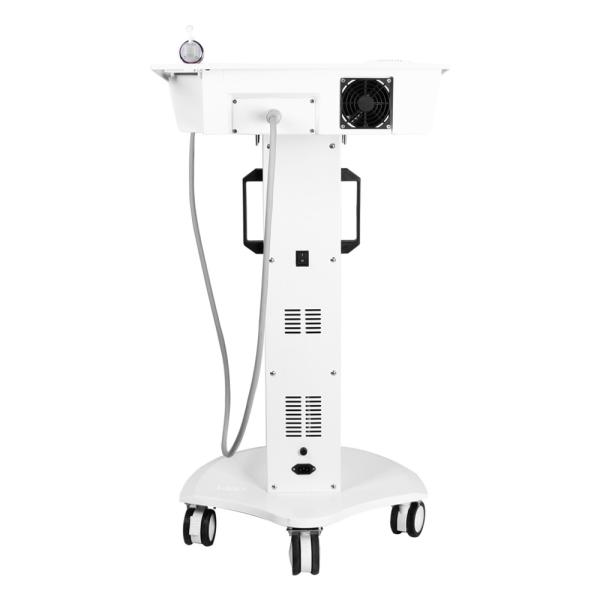

Skin tightening micro-needle fractional RF machine
System introduction
The microneedle part of the radio frequency system is an ideal
technology that uses minimally invasive microneedles to directly
transmit controlled RF energy to various depths of the skin. It can
be used for skin lifting, firming and rejuvenation. It has
excellent success in all skin types, with extremely low risk of
side effects and PIH, which is a key difference compared to
optical-based treatments (IPL and laser).
The RF energy is transmitted through the focusing tip of the
microneedle, thereby reducing damage to the surrounding epidermis.
Compared with traditional fractional lasers, this greatly reduces
patient discomfort and downtime. Non-insulated microneedles are
more effective and can solve epidermal and skin problems without
the need for other superficial radiofrequency treatments (SFR).
parameter
| RF frequency | 2MHz, bipolar |
| RF power | 10-200W |
| Needle cartridges | 10pin,25pin,64pin,nanochip(option) |
| Needle Thickness | 0.3mm |
| Needle Depth | 0.2-3.5mm(0.1 step) |
| Treatment Duration | 0.1-0.6s |
| Suction level | -2 level |
| Control Display | 8.4 inch color touch screen |
| Voltage | AC 110V/220V, 50Hz/60Hz |
| Weight | 30kg |
| Packing size | 95*27*35cm3+61*51*24cm3 |
functions
| Face treatment | Body Treatment |
| Non-Surgical Face Lifting | Scars |
| Skin Tightening | Neck Wrinkle |
| Skin Rejuvenation | Stretch Mark |
| Whitening | |
| Pore Reduction | |
| Acne Scars | |
features:
1. Non-insulated needles: the same treatment of epidermis and
dermis
2. Stepper motor type: the needle is smoothly inserted into the
skin without being affected
3. Gold-plated needles: high biocompatibility, suitable for
patients who are allergic to metals
4. Precise depth control: within the range of 0.2-3.5mm, with 0.1mm
as the unit
5. Safe handling: sterile disposable needle box
6. Suction tip, better skin contact
7. Trigger the touch-tone phone
8. 3 kinds of filter cartridges are suitable for different
processing areas
Accessory list
1 x Main Machine
1 x RF needle probe
3 x Fractional needle cartridges(single use only)
1 x Power Cord
1 x User Manual
COMMON QUESTIONS
How long does a treatment take?
The topical anesthetic cream requires 20 to 30 minutes to take
effect prior to treatment, and then the treatment takes 20 to 30
minutes, including after care. So, each session requires
approximately 1 hour. The tips are single use.
How does the treatment feel?
Especially with the correct application of a good topical
anaesthetic, the treatment is highly tolerable.
How long is recovery after treatment?
Initially, you may develop transient erythema on the treatment site
within 3-4 hours. Since the treatment is aimed at the deep layers
of the skin, it can significantly reduce the downtime associated
with the treatment.
What is the recommended treatment regimen?
The typical interval between treatment sessions is once every 3-4
weeks. Most patients have seen excellent results after 2-4
treatments. This may vary depending on your skin condition, and
your doctor will be able to better evaluate this and provide
recommendations.
