Portable Ultrasound Extracorporeal Shock Wave Therapy Machine
PRINCIPLE
Extracorporeal Shock Wave Therapy Equipment also called Acoustic
Wave Therapy Equipment, mainly for physical therapy treatment,
sports injury, rehabitation treatment and cellulite reduction.

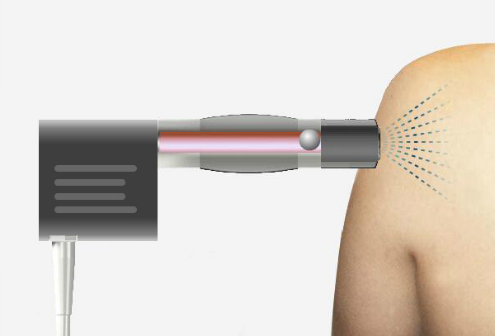

Shockwave therapy principle
The shockwave therapy equipment is based on the technology of
unfocused low energy radial waves, which is a kind of acoustic wave
which carries high energy to painful spots and fibrous or
myoskeletal tissues with subacute, subchronic and chronic
conditions. This energy promotes healing, regenerating and
reparative processes of the tendons and soft tissue. The unfocused
low energy radial waves scientifically proved to have a large
impact on collagen structure and the skin connective tissue,
improving blood circulation and the metabolism of fat cells. The
mechanical massage effect reduces the edema and improves the
lymphatic drainage of toxins. It stimulates collagen formation,
while the skin becomes more elastic and its firmness is visible
after only a few treatments.
How shockwave remove cellulite?
Extracorporeal Shockwave Therapy (ESWT), which emits and generates
pulse-like vibrations to attack the fiber bundles surrounding the
subcutaneous fat deposits. It is a technology that loosens and
breaks fibers and releases fat, water and toxins. At the same time,
it stimulates the production of very active and healthy new
collagen fibers, and gradually restores the elasticity and strength
of the skin. The waves accelerate blood circulation, and more
oxygen and nutrients reach these areas. The end result is smoother
and firmer skin quickly and permanently.
Ultrasound wave
The ultrasound waves are generated by a piezoelectric effect caused
by the vibration of crystals within the head of the probe. The
ultrasound waves that pass through the skin cause a vibration of
the local soft tissues.
SHOCKWAVE INDICATIONS
Myofascial trigger point therapy on back and shoulders
Trochanteric bursitis
Periostitis / shin splints (Condition after overload)
Dupuytren's disease
Thumb basal joint arthritis / rhizarthritis
Sports injury
Myofascial trigger points
Heel spurs
Radial and ulnar epicondylitis, tennis elbow
Tendinitis of the shoulder / shoulder problems
Calcific tendinitis of the shoulder
Status post muscular injury
Patellar tendinitis
Patellar tendinopathy
Achillodynia
Plantar fasciitis
Erectile dysfunction
AESTHETICS PURPOSE
Body reshaping
Anti-cellulite treatment
Treatment of skin irregularity after liposuction
Skin elasticity improvement
Connective tissue tightening
Scar and wrinkle smoothing
Reduce stretch marks
Lymphatic system stimulation
ULTRASOUND INDICATIONS
Massage
Pain threatment
Promote metabolism
Collagen synthesis
ADVENTAGES
1. High efficiency, relieve pain quickly
2. Noninvasive, no anesthetic, convenient and fast
3. Each nursing only 10 minutes, 5-10 nursing each session
4. Widely applied to different soft tissue treatments
PARAMETER
| Shockwave type | Pneumatic shockwave |
| Screen | 8.4 inch true color touch screen |
| Pulse frequencies | 1 – 20 Hz, stepping at 1Hz |
| Energy levels | 1 – 6.0 Bar, stepping at 0.1Bar |
| Transmitters | 5 transmitters (A6/D15/R15/D20/D35) F15 optional |
| Counter | yes |
| Shockwave handpiece revision | 4,000,000 shots |
| Ultrasound energy | 5W±20% |
| Ultrasound handpiece diameter | 2cm²±20% |
| Ultrasound mode | Pulse, continuous |
| Ultrasound frequency | 3MHz |
| Weight | 8Kg |
| Dimension | 38cm*37cm*21cm |
| Power Specification | AC110/220V±10%, 50Hz-60Hz 16A
|
ACCESSORY
Shockwave gun*1
Transmitter*5(A6/D15/R15/D20/D35)
Bullets and barrels set*2
Shockwave gun holder*1
Ultrasound gun*1
Ultrasound gun holder*1
Key*2
Drainage connector*1
Power cord*1
Screws*3
