Brand Name : | Astiland |
Model Number : | CL-10 |
Certification : | CE,ISO |
Payment Terms : | T/T, Western Union, MoneyGram,Credit card,Paypal |
Supply Ability : | 100 sets per month |
Delivery Time : | 7-10 work days |
INTRODUCTIO
Vagin Rejuvenation CO2 FRACTIONAL LASER
Vagin Laser
CO2 non-surgical fractional laser system works by optically splitting a laser beam into a series of very small dots that are aimed at the inside wall of the vagin. At the point of contact, the laser dot removes a tiny area of tissue. This creates a microscopic pinhole around the diameter of a human hair. As the body repairs itself, it stimulates cells to create new healthy tissue at the site of the dot and immediately surrounding it. The laser also works to heat the area between dots, stimulating the activity of specialized cells that create elastin and collagen – the important component of healthy tissue.
Improved blood flow and tissue tone reduces pain, improves sexua and urinary function and may increase sexua gratification.The treatment itself is low risk, relatively painless, and suitable for most women. Clinical results prove that the fast and easy-to-perform vagin laser treatment is an effective, non-invasive procedure with minimal undesired side effects and contraindications.
Fractional Laser
it can offer the modes of dynamic scan and random scan under "fractional output" work pattern. The microprocessor-controlled system and precise optical scanner make the output laser lattice's figures, shapes and density adjustable to construct various methods, which make the treatment more flexible and better targeted. The unique intelligence-controlled random scan technology makes sure every treatment point have enough time to cool, avoids the skin injury caused by accumulation of heat during the treatment, and decreases with side effect degree considerably while increasing the treatment effect.
SPECS
Laser type | RF-CO2 laser (10.6µm) |
Output power | 1-40W (Single pulse) 1-120W (Super pulse) |
Aiming beam | 635nm diode laser |
Control panel | 10.4” touch screen |
Matrix form | Pulsed light scanning |
Scan pattern | Rectangular, square, circular, oval (standard), triangular, hexagonal, and straight line |
Scan points | 1-4000 points |
Penetrate depth | 2000um(FFLS), 600um(HFLS) |
Scanner focal length | F=50mm(FFLS) or F=100mm(HFLS) |
Max output intensity | 75000W/cm2 |
Beam emission angle | 0.4 m rad |
Duration | 0.1-2000ms |
Pulse energy | 5mj-100mj/point |
Total pulse energy | 125mj-1kj |
Focal spot diameter | 0.1mm(FFLS),0.2mm(HFLS) |
FFLS scan size | 15*15mm max |
HFLS scan size | 20*20mm max |
Cooling system | Air cooling |
Delivery system | 7 joint articulated arm |
Laser power | 30W |
Inhale and deflate air system | optional |
Working condition | 20℃-60℃ relative humidity 90% |
Power input | 230V 60Hz, 110V 50Hz |
Machine size | 51cm*55cm*147cm |
Gross weight | 60kg |
Vagin Laser Functions
Tighten vagin –Fast tightening, lasting constriction, tightness to improve 60%;
Clean the vagin – Deep anti-aging, young level to improve 80%;
Moist vagin – Improving secretion, moisture level to improve 80%;
Pink vagin – Vulva rejuvenation, lighten pigment and pinks labia parts, delicate degree to improve 70%
Fractional Laser Functions
Skin renewing and resurfacing
Wrinkle removal, skin tightening
Acne and scar removal, melasma removal
Smooth scars like burn, surgery, traumatic, and stretch marks, etc
Remove intractable chloasmas and pigmentation
Sun damage recovery
Features
1. USA imported metal RF tube, compact and all metal sealed, stable performance, high power, no consumable costs.
2. 3 in 1 system: surgical laser, fractional laser, vagin laser.
3. 7-jointed arm laser transmission system makes a flexible operation and less energy costs.
4. 10.4 inch true color LCD touch screen, humanized software control.
5. 3 optional laser output modes: shuffle, sequential scanning and discrete scanning for all needs of surgeries.
6. Scanning field lens for better evenness of scan in a flat. Spot diameter 0.1mm.
7. Multiple graphics and scanning mode, the graphics could be two-way adjusted.
8. Use visible aiming beam to aim the treatment area precisely.
9. Inhale and deflate air system can be build in.
Comparison of RF tube and glass tube laser
RF tube | glass tube | |
Laser tube | Imported | Made in China |
Life span | 6 years, no need change | Consumable, 1000hours |
Cooling | Air cooled | Air and water cooled, long time working may affect laser energy |
Spot diameter | 0.1mm | 0.25mm |
Stability | Sealed metal tube with low voltage power supply | High voltage power supply, power aging easy, burn other parts |
Patient feeling | Low pain, quick treatment and recovery, | Pain, cost more treatment and recovery time |
Price | Expensive | Cheap |
Accessory list

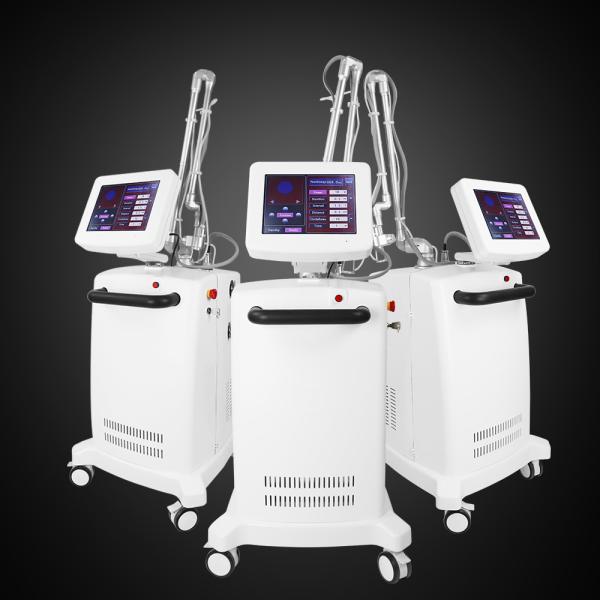

1 x Main Machine
1 x Laser probe
1 x Fractional laser probe
3 x Vagin probes
1 x Light guide arm (instrument parts)
1 x Glasses
1 x Goggles
1 x Pedal
1 x Power Cord
1 x Air-duct pipes
1 x User Manual
