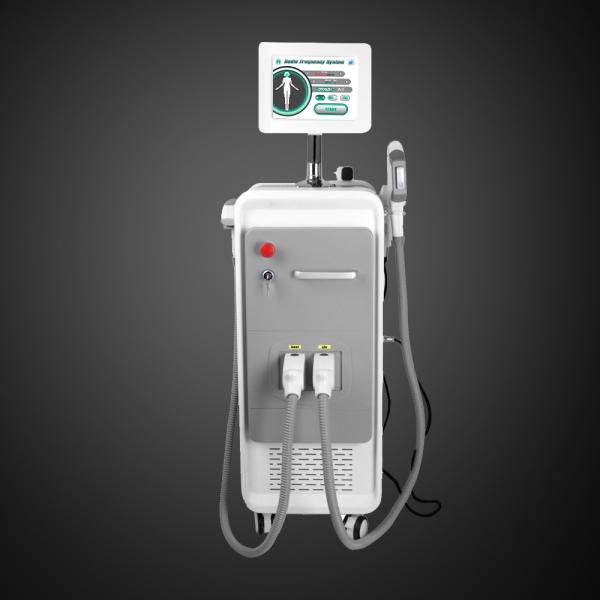

Non surgical tightening lift ipl beauty equipment shr in motion
photoepilation with 10.4inch touch screen for hair removal
SHR
SHR stands for Super Hair Removal, a technology of permanent hair
removal. The system combines laser technology and the benefits of
the pulsating light method achieving practically painless results.
Even hairs which until now have been difficult or even impossible
to be removed can now be treated. The treatment is more pleasant
than with the conventional systems and your skin is better
protected.
Q-SWITCHED ND YAG LASER
The special wavelength of YAG laser can penetrate skin of human
body according to the theory of “selective laser decomposing”, the
instrument uses the laser-wave to break Chromophore into pieces,
and to achieve the purpose of de-freckle with these pieces
naturally absorbed by the body. With Carbon assisted laser tips,
can do laser toning, rejuvenation, whitening and etc skin beauty
treatment.
FRACTIONAL RF
Fractional RF delivers accurate Bipolar RF energy to the skin by a
tip built of an array of small pins and return electrodes to create
microscopic thermal zones (MTZ). The RF energy introduce fractional
thermal into the deep dermis and create potential healing effects
in the microscopic thermal zones. Undamaged tissue between the
electrode pins acted as a healing server to accelerate the collagen
rebuilding and skin tissues remodeling. Unlike the traditional
laser therapy, the majority of the fractional RF energy is focused
in the dermis while only a small percentage of the surface is
effected, resulting in deep volumetric dermal heating and ultimate
result.
PARAMETER
SHR |
Filters | 480/560/590/640/690-950nm |
Spot size | 15mm*50mm or 8mm*40mm |
Lamp longevity | 200,000shots |
Energy | 10-50J |
Pulse repetition rate | 1-5Hz |
Pulse Width | 1.0-5ms |
Skin cooling | -4°c-10°c |
Power | 2000W |
Capacitors | 44,000uf |
FRACTIONAL RF |
Treatment head | 23*23mm 64pin; 43*43mm 196pin |
Output Frequency | 6.78MHz |
Energy | Max 142mj/pin |
Treatment Mode | continuous/pulse |
Power | 120W |
Q-SWITCHED ND YAG LASER |
Treatment head | 1064 & 532 & soft laser treatment tips |
Energy | 100-1200mj |
Guiding light | 635nm |
Pulse duration | 8ns |
Frequency | 1-6Hz |
Power | 600W |
System |
Display | 10.4” inch true color touch screen |
Voltage | 220-240V/50Hz,100-110V/60Hz |
Machine Power | 3000W |
Cooling system | Wind+water+semiconductor |
Machine Dimensions | 50cm*55cm*115cm |
Package Dimensions | 58cm*60cm*130cm |
Net weight | 45kg |
Total weight | 60kg |
SHR APPLICATION
Permanent hair removal
Skin rejuvenation
Pigment removal
Vascular treatment
Acne therapy
LASER APPLICATION
Pigmentation
Dispel the Spots
Decrease Vascular
Skin care
Shrink Pores
Tattoo Removal
Birthmark Removal
Eyeline Removal
Balance Oil
Mole Removal
RF APPLICATION
Cheek, jaw, neck skin tightening
Nasolabial fold improvement
Waist and abdomen, limbs, weight loss
Hips, big legs, orange peel-like skin improvement
Features
1. Multifunctional any 3 technologies from IPL, Elight, SHR,
Bipolar RF, Fractional RF, Q-switched nd yag laser
2. 3 technologies combine in 1 screen
3. 3000W high power
4. Super cooling system ensure long time working
5. 10.4” universal rotating true color touch screen
6. User friendly interface:
auto counter for SHR and laser
7 languages support
IPL/SHR Automatic mode setting by skin color, hair color, hair
density
Water flow&water temperature auto checking and warning, get rid
of checking water level
7. IPL/SHR handpiece -4℃ contact cooling
8. Laser aim beam
9. Save your cost pay 1 get more
10. OEM service free
11. Factory direct sale
Accessory list
1064&532&soft laser treatment tips
Universal rotating arm
IPL handpieces
IPL filters
Laser handpiece
RF handpiece
Body/face RF tips
Handpiece holders
Glasses
Goggles
Fuse
Power Cord
Key
Funnel
Pedal
User Manual
