Laser Pigmentation Removal Beauty Equipment ND Yag Laser Machine
Removal Pigment Spots
QL-40 uses Q-switch ND YAG laser technology. The laser can be
absorbed by the blue and black melanin. The melanin will split into
even more tiny particles. They are so small that they can be
metabolized by the lymphatic system and be egested out of the body.
Thus the tattoo or other pigmentations will be removed without any
injury to normal tissue. The treatment is safe and convenient
without downtime or side effects.
Laser Pigmentation Removal Beauty Equipment System Introduction
The system adopts a 600W laser power supply, with energy reaching
1200mj. Special designed 8’ true color touch screen control panel,
easy to use. Automatic checking of water temperature and water
flow, assure the safety use of the machine. With 3 laser tips can
do various treatments of tattoo and pigmented lesions removal,
laser toning, and so on.
Features of Laser Pigmentation Removal Beauty Equipment
1. Multifunction system: Provide 3 laser tips: 532nm for red and
blue pigment, 1064nm for black and brown pigment, and 1064nm
carbon-assisted tip for skin care.
2. Easy to use: Handle with total counting record, plug and play
connector easy to interchange. The red aiming indicator can be
turned on/off.
3. Safety use: 8-inch true color touch screen with automatic water
recycling and temperature detector,
4. High power: 600 W power supply, 100-1200mj output fluence
adjustable, 1-6 Hz frequency adjustable
5. Super cooling system: longer continuous working hours perfectly
match massive pigment removal needs.
6. Economical: high-quality lamp assures flash of 2,000,000.
Portable design is economical for transportation.
Tech Parameters of Laser Pigmentation Removal Beauty Equipment
| Laser type | q-switched nd yag laser |
| Wavelength | 1064nm, 532nm, carbon assisted tips |
| Fluence | 100-1200mj |
| Frequency | 1-6Hz |
| Pulse width | 8ns |
| Spot size | 1-3mm |
| Aiming laser | Red diode 650nm, on/off |
| Laser power | 600W |
| Cooling system | automatic water detector cooling+air cooling |
| Power input | 230V 60Hz, 110V 50Hz |
| Machine size | 49cm*47cm*27cm |
| Net weight | 20kg |
Functions of Laser Pigmentation Removal Beauty Equipment
1. Remove various tattoo, eye line, eyebrow, pigmentation.
2. Remove chloasma, age pigment, nevus, birthmark and Nevus of Ota.
3. Skin tightening, skin whitening, skin toning.

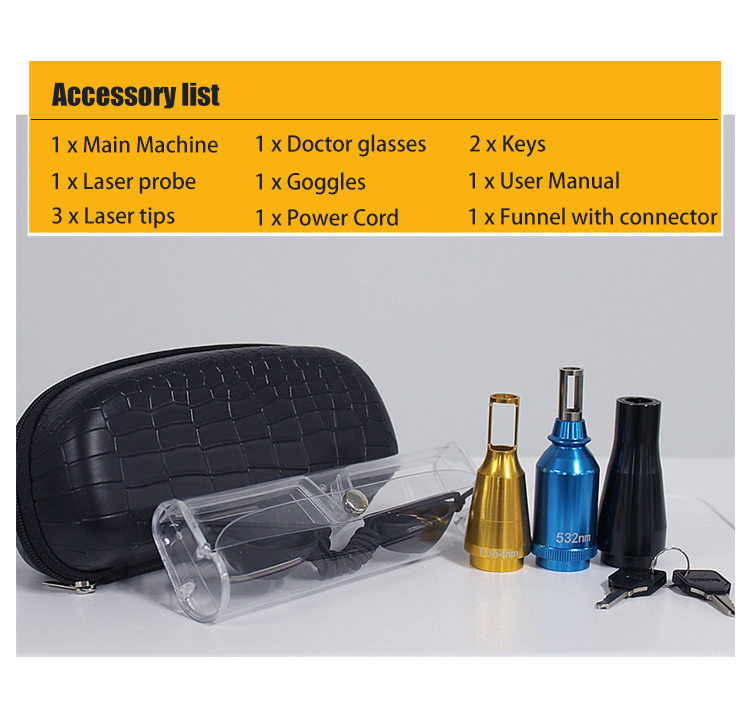

Accessory list
1 x Main Machine
1 x Laser probe
3 x Laser tips(532/1064/1320nm)
1 x Doctor's glasses
1 x Goggles
1 x Power Cord
2 x Keys
1 x Funnel with connector
1 x Drainage connector
2 x Fuse
1 x User Manual
