Vertical Type 808/755/1064nm Fiber Coupled Diode Laser Device for
Hair Removel

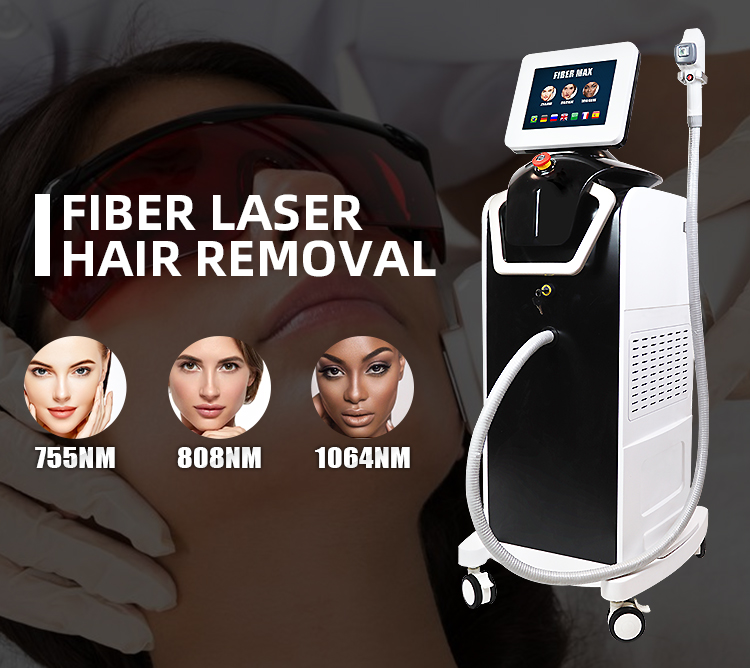

Fibermax fiber laser hair removal system is equipped with a
3-wavelength 755 808 1064nm handle, which transmits short pulses at
a lightning speed of 0.1s to destroy hair follicles. The fiber
laser generator is on the machine instead of on the head, which is
the absolute advantage of competing diode lasers. The handle head
is smaller, lighter, durable and free of consumables. The 1800W
high-power dual cooling system brings a more effective, safe and
comfortable treatment experience.
What is Fiber Coupled Diode technology?
The light generated by multiple diode lasers is coupled to a
single-core multimode fiber through a microlens array to transmit
the light to the target location. The fiber semiconductor laser
adopts the 810nm wavelength depilation gold standard. It inherits
all the advantages of the traditional 810nm semiconductor laser,
and creatively improves and integrates laser technology. At the
same time, the optical transmission method is upgraded to a more
efficient and non-attenuating optical fiber method, thereby
improving the efficiency of hair removal. At the same time, the
laser output energy is more uniform, the heat dissipation comfort
is further improved, and the laser failure rate is greatly reduced.
At the same time, the life of the laser is greatly improved, the
operating tools are lighter, and the hair removal efficiency is
greatly improved.
The Advantages of use fiber coupled diode laser:
– Since the focus point resides in a separate component the diode
can be replaced without changing the pulse alignment.
– It allows smaller and more compact machine designs or leaves more
room for more complex cooling systems since it requires less space.
– Fiber-coupled devices can be easily combined with other
fiber-optic components.
–The fiber semiconductor hair removal laser adopts an optimized
semiconductor laser chip scheme, which disperses and gathers the
original integrated laser chips, has a larger cooling water
capacity, faster heat dissipation of the chip, faster cooling, and
the instrument has a better treatment mode.
FUNCTIONS
1. The three wavelengths are 755/808/1064nm, and the spot size is
larger.
Use the advantages of 3 wavelengths to achieve the best coverage
and penetration, and achieve the final hair removal effect.
The enlarged spot size enables faster treatment and saves operator
time.
2. 1800W high-power lightning fast treatment
3. Multi-language interface, preset parameters, simple operation.

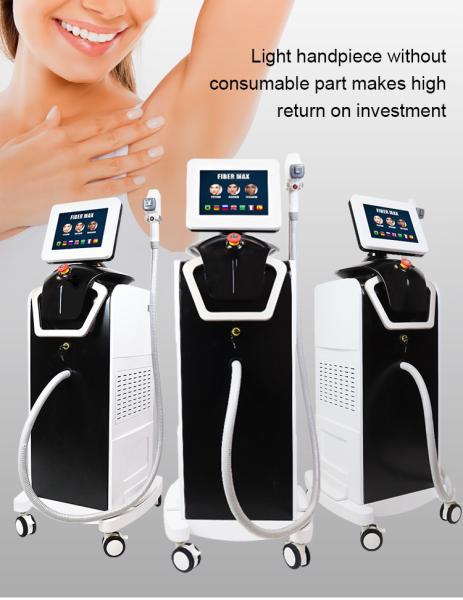

4. The handle is light, no consumables, and high return on
investment.
FEATURES
* 3 Wavelength 755/808/1064nm, suitable for all kinds of hair
depths and colors.
* The service life is longer than other products (nearly 10 years).
* Low requirements on the cooling system.
* More concentrated energy, maximum laser output.
* The life span of the lens exceeds 50,000,000 times.
* Uniform energy distribution.
* Lightweight handpeice and sapphire contact cooling.
* Handpiece with counter, optional patent small tip for small area
hair removal.
PARAMETER
| Laser type | Fiber Coupled Diode Laser |
| Wavelength | 808nm |
| Laser power | 1800W |
| Pulse width | 5-600ms |
| Energy density | 1-120J/cm2 |
| Frequency | 1-10Hz |
| Skin type | I-VI |
| Screen | 8.4 inch touch screen |
| Spot size | 12mm*12mm |
| Cooling type | Sapphire contact cooling |
| Cooling temperature | ≤5℃ |
ACCESSORY
Laser handpiece *1
Power cord *1
Doctor glasses *1
User manual *1
Patient goggles *1
Fuse *2
Funnel *1
Key *2
Drainage connector *1
