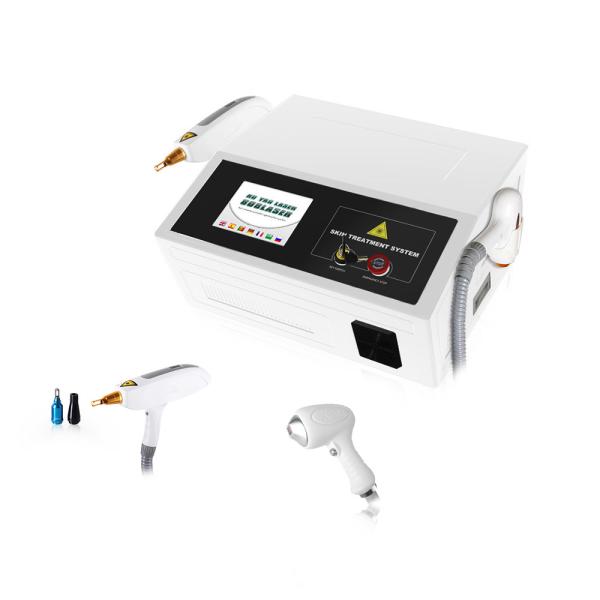

Q Switched ND Yag Laser Pigmentation Removal 808NM Diode Laser 2 in
1 Machine Portable
Q Switched ND Yag Laser Pigmentation Removal 808NM Diode Laser 2 in
1 Machine Introduction
Pigment removal and permanent hair removal are the most demanding
treatment in beauty spas and derma clinics. This portable equipment
perfectly combines 808nm diode laser and q-switched nd yag laser
technology, easy carry-out and saves space.
Q-switch nd yag laser can be absorbed by the blue and black
melanin. The melanin will split into even more tiny particles. They
are so small that they can be metabolized by the lymphatic system
and be egested out of the body. Thus the tattoo or other
pigmentations will be removed without any injury to normal tissue.
The treatment is safe and convenient without downtime or side
effects.
808nm diode laser system is a widely practiced and ideal hair
removal system in clinical use. Selective photothermolysis (SPTL),
is the matching of a specific wavelength of light and pulse
duration to obtain optimal effect on a targeted tissue with minimal
effect on surrounding tissue. Lasers can cause localized damage by
selectively heating dark target matter, melanin, in the area that
causes hair growth, the follicle, while not heating the rest of the
skin. The energy absorption of hair follicle melanin is strongest
at 808nm wavelength, which can damage the hair follicles
effectively, meanwhile no adverse reaction to the skin surface.
Features of Q Switched ND Yag Laser Pigmentation Removal 808NM
Diode Laser 2 in 1 Machine
1. Multifunctional: 2 laser technology combine in 1 system.
2. High power: 600 W q-switched laser power, 100-1200mj output
fluence adjustable, 1-6 Hz frequency adjustable;
600W imported coherent diode laser bars, total power 2500W.
3. Quick treatment: 15mm*20mm large spot size covers a larger
treatment area per shoot.
4. Economical: q switched nd yag laser assures flash 2,000,000.
Diode laser ensures 20,000,000 shoots. Portable design is
economical for transportation.
5. Super cooling system: condenser adapted cooling system ensures
longer continuous working hours perfectly match massive treatment
needs.
6. Comfortable: 0~-5℃ sapphire contact cooling temperature.
7. Easy to use: Handle with total counting record, plug and play
connector easy to interchange. Red aiming indicator can be turned
on/off.
8. Safety use: automatic water recycling and temperature detector
ensure machine long working life.
Functions of Q Switched ND Yag Laser Pigmentation Removal 808NM
Diode Laser 2 in 1 Machine
1. Pigmentation Removal, and various tattoo removal, also support
removing eye lines, eye brows.
2. Remove chloasma, age pigment, nevus, birthmark and Nevus of Ota.
3. Skin tightening, skin whitening, skin toning.
4. Permanent hair removal.
Q Switched ND Yag Laser Pigmentation Removal 808NM Diode Laser 2 in
1 Machine Tech Specs
| Laser type | Q-switched nd yag laser | 808nm Diode laser |
| Wavelength | 1064nm, 532nm, carbon-assisted tips | 808nm |
| Fluence | 100-1200mj | 1-120J/cm² |
| Frequency | 1-6Hz | 1~10hz |
| Spot size | 1-3mm | 15mm*20mm |
| Laser power | 600W | 600W |
| Pulse width | 8ns | |
| Aiming laser | Red diode 650nm, on/off | |
| Machine power | 2500W |
| Case material | ABS |
| Display | 8’ color touch screen |
| Cooling system | automatic water detector cooling+air cooling |
| Power input | AC220V/110V±10%, 50-60HZ |
| Machine size | 60cm*65cm*40cm |
| Net weight | 30kg |
Accessory list
1 x Main Machine
1 x Nd yag laser probe
1 x Diode laser probe
3 x Laser tips (1064/532/1320nm)
1 x Doctor's glasses
1 x Goggles
1 x Power Cord
1 x Funnel with connector
1 x Drainage connector
2 x Keys
2 x Fuse
1 x User Manual
